Overview

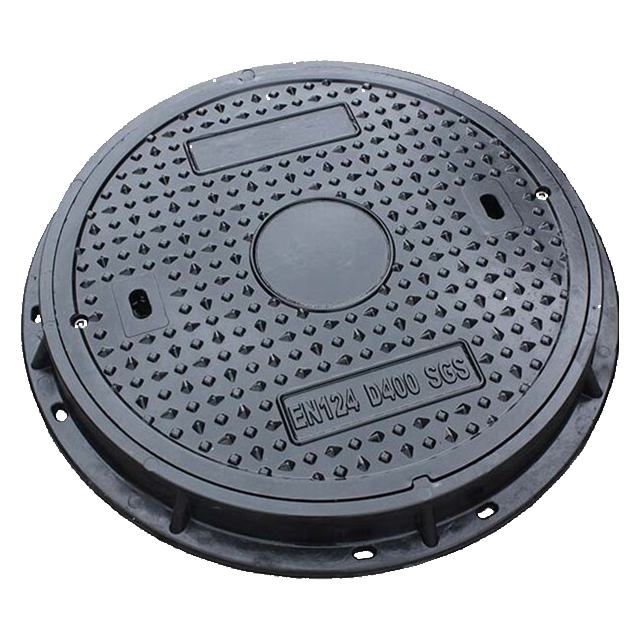

Zeal Impex offers high-performance Fiber Reinforced Plastic (FRP) manhole covers, crafted from a composite material consisting of thermoset polyester resin, reinforced with glass fibers and quartz aggregate. The glass fibers are arranged strategically to provide specific load-bearing capacities, and the resin binds these materials together, forming a composite with exceptional compressive, tensile, and flexural strength. The addition of quartz further enhances the strength of the manhole cover, making it an ideal solution for various applications requiring high durability and reliability.

Technical Specifications:

• Types:
  • Type 1 – Low Duty
  • Type 2 – Light Duty
  • Type 3 – Medium Duty
  • Type 4 – Heavy Duty
  • Type 5 – Extra Heavy Duty
• Load Categories:
  • 2.5 Tons, 5 Tons, 10 Tons, 20 Tons, 40 Tons
• Applications:
  • Pedestrian use
  • Two- and Three-wheeler vehicles
  • Lightweight automobiles (e.g., Cars, Mini-Vans)
  • Medium-weight vehicles (e.g., Vans, Small Trucks)
  • Heavyweight vehicles (e.g., Fire Trucks, Water Tankers)

Advantages

• Quality:
  • Waterproof and non-corrosive
  • High strength-to-weight ratio
  • Lightweight and easy to handle
  • Ability to withstand a wide temperature gradient
• Durability:
  • Long lifespan of over 30 years

Sizes & Configuration

Zeal Impex FRP manhole covers are available in standard sizes that comply with industry standards. These include the following load capacities:

• IS 1726 – 1991: 2.5 Tons, 10 Tons, 20 Tons, 35 Tons
• BS EN 124: 15 Tons, 12.5 Tons, 25 Tons, 40 Tons

Customization

Zeal Impex provides customized solutions for our FRP manhole covers, including:

• Decorative surface designs
• Size and color variations

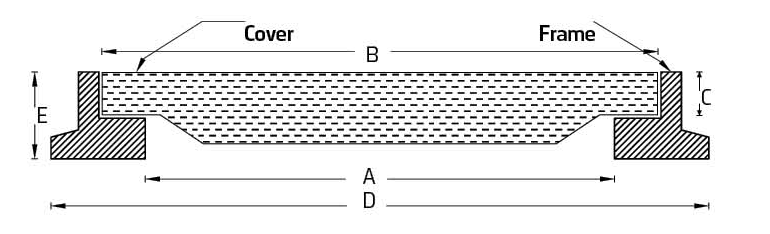

Standard Sizes

• Clear Opening:
  • A – 450 Dia, 560 Dia, 600 Dia, 750 Dia, 900 Dia, 225×300, 300×300, 450×450, 450×600, 600×600, 600×750, 750×750, 900×450, 900×600, 900×750, 900×900, 1000×1000, 1200×600, 1200×900, 1200×1200
• Cover Details:
  • B – 510 Dia, 620 Dia, 660 Dia, 810 Dia, 960 Dia, 275×350, 350×350, 510×510, 510×660, 660×660, 660×810, 810×810, 960×510, 960×660, 960×810, 960×960, 1060×1060, 1260×660, 630(2)×960, 1260×1260
• Frame Details:
  • D – 580 Dia, 690 Dia, 730 Dia, 880 Dia, 1060 Dia, 395×450, 450×450, 580×580, 580×730, 730×730, 730×880, 880×880, 1030×580, 1030×730, 1030×880, 1030×1030, 1130×1130, 1330×730, 1330×1030, 1330×1330
  • E – 60, 70, 80

Zeal Impex’s FRP manhole covers are designed to provide superior strength, longevity, and reliability, making them an excellent choice for a wide range of applications in municipal infrastructure, commercial, and industrial settings
